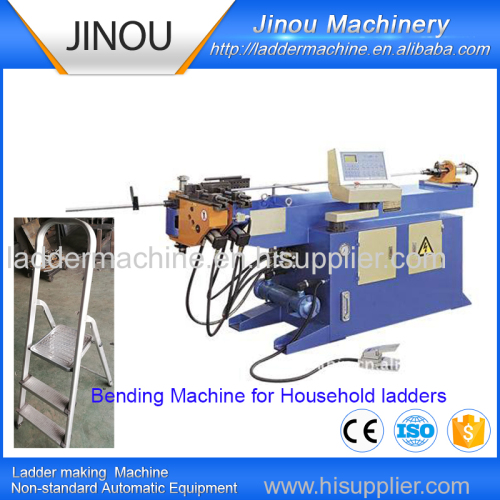

DW-38 Single head Pipe bending machine

  Microcomputer control, with manual control, semi-cycle control, automatic control mode.

 LCD digital display, touch button, install the automatic overload protection, automatic detection of machine failure and operational failure.

  Mobile foot switch, with emergency stop function, automatic storage memory function and power failure automatic protection.

 Used in steel pipe ladder foot pipe bending, ladder frame bending ,and household ladder pipe bending.

 Used for carbon steel pipe size: Φ38 * 2mm

 The most wearing core length: 1700 mm

 Maximum bending radius: 200 mm

 Motor Power: 4 KW

 Weight: 680 Kg

  Dimensions: 240 * 750 * 120 CM

We are ladder making machine factory in China(Yongkang Jinou Machinery Co., Ltd), provide a range of the ladder machines such as : ladder riveting machine, tube expanding machine, pipe crimping machine, aluminum cutting machine, pipe bending machine, aluminium profile grinding and polishing machine and so on , with our machines , you will improve your work efficiency greatly .
